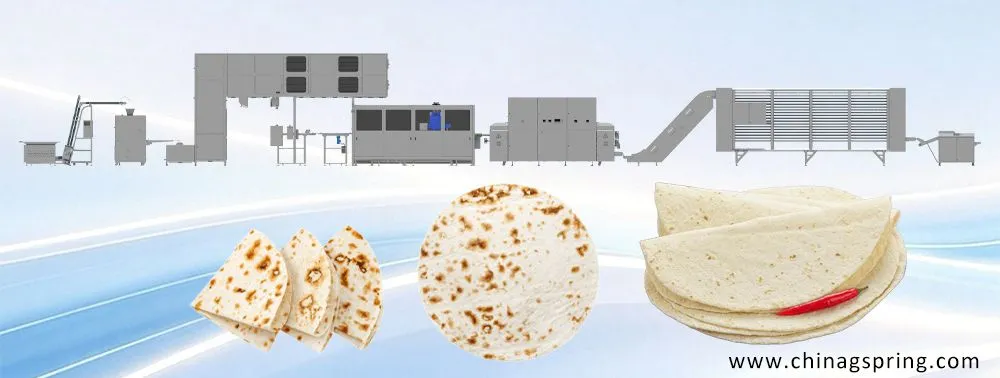

Fully Automatic Tortilla Production Line
High Efficiency Automatic Tortilla Making and Processing Equipment
The Fully Automatic Tortilla Production Line is an integrated continuous flatbread processing system specially designed for high-efficiency commercial and industrial tortilla production.
The complete production line integrates raw material mixing, dough dividing, rounding, fermentation and relaxing, hot press forming, baking, cooling, visual inspection, counting, stacking, and packaging into one automated production system.
With minimal manual intervention, the automatic tortilla production line helps manufacturers improve production efficiency, maintain consistent product quality, reduce labor requirements, and achieve stable large-scale tortilla production.
It is an ideal solution for tortilla factories, food processing plants, Mexican food manufacturers, commercial bakeries, restaurants, catering companies, and industrial flatbread production facilities.
Automatic Tortilla Production Process

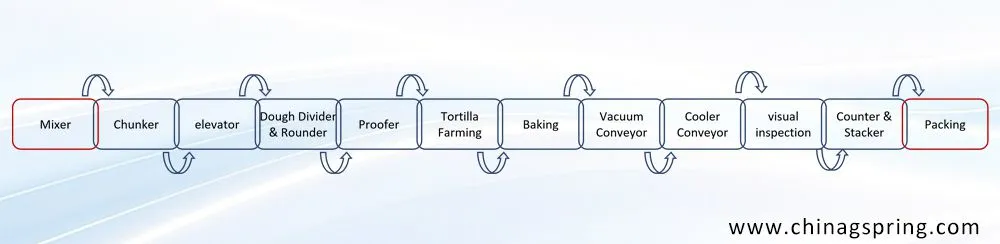

Raw Material Mixing → Dough Dividing → Dough Rounding → Fermentation & Relaxing → Hot Press Forming → Three-Layer Baking → Rapid Cooling → Visual Inspection → Counting & Stacking → Packaging
The complete process is continuously connected, providing an efficient solution for modern tortilla manufacturing.

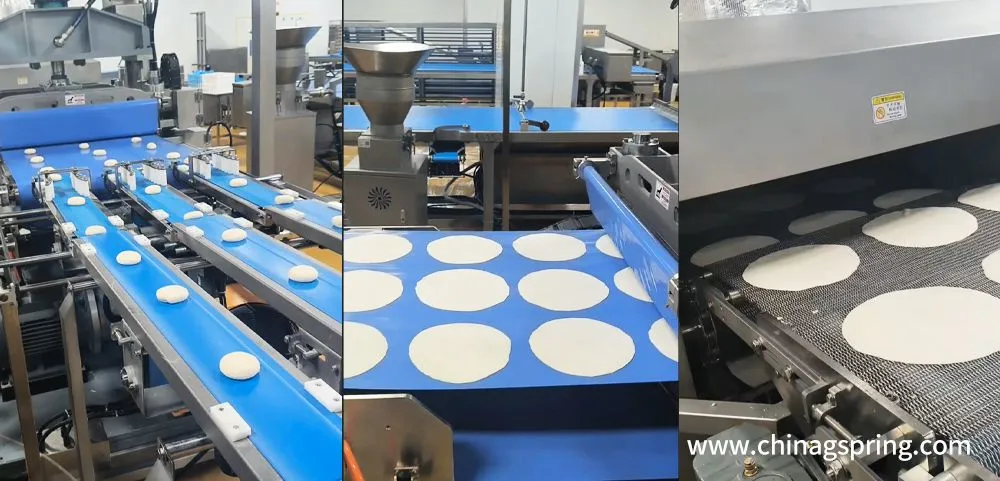

1. Automatic Dough Dividing & Shaping
The dough handling system performs quantitative dough dividing, cutting, rounding, fermentation, and relaxing.
Accurate dough portioning helps maintain consistent dough-ball weight and improves the uniformity of finished tortillas.
Advantages:
Automatic quantitative dough dividing
Consistent dough-ball weight
Automatic rounding and shaping
Controlled fermentation and dough relaxation
Reduced manual operation
Suitable for continuous production
2. High-Pressure Hot Press Forming & Pre-Curing
The automatic hot press system applies controlled pressure and heat to transform dough balls into evenly shaped tortilla skins.
The process combines pressing, forming, and preliminary curing, helping achieve consistent tortilla diameter and thickness.
Key benefits:
Uniform tortilla shape
Consistent thickness
Adjustable pressing parameters
High production efficiency
Suitable for automated production lines
3. Three-Layer Temperature-Controlled Baking System
The production line adopts a three-layer conveying and temperature-controlled baking system with double-sided heating.
The multi-layer baking configuration provides controlled heating throughout the baking process, helping ensure thorough cooking and consistent tortilla quality.
Features include:
Three-layer conveying structure
Temperature-controlled baking
Double-sided heating
Adjustable baking parameters
Uniform cooking
Continuous automatic production
4. Rapid Cooling & Tortilla Shaping
After baking, the tortillas enter the automatic cooling system.
Rapid and controlled cooling helps reduce product temperature, minimize adhesion between tortillas, and maintain the desired shape and texture before packaging.
Benefits:
Rapid product cooling
Reduced tortilla adhesion
Improved product handling
Better shape retention
Suitable for automatic packaging
5. Intelligent Visual Inspection & Rejection
The production line can be equipped with an intelligent visual inspection system for automatic quality control.
The system identifies and rejects defective tortillas according to preset quality standards.
Potential defects that can be detected include:
Elliptical deformation
Size deviation
Notches
Edge burrs
Hollow spots
Irregular shape
Other visible forming defects
This intelligent inspection function helps improve product consistency and reduce the need for manual quality inspection.
6. Automatic Counting, Stacking & Packaging
After inspection and cooling, qualified tortillas are automatically counted and stacked.
The automatic stacking system can be connected with downstream packaging equipment to create a complete tortilla production and packaging line.
Advantages:
Automatic counting
Accurate stacking
Reduced manual handling
Improved packaging efficiency
Easy integration with automatic packaging machines
Key Features
New-generation automatic pressing technology
High-efficiency tortilla forming
Consistent tortilla diameter and thickness
Adjustable pressing parameters
Automatic dough feeding
PLC intelligent control system
Touch-screen operation
Stable continuous production
Food-grade stainless steel construction
Easy operation and cleaning
Suitable for different tortilla sizes
Customized production capacity
OEM & ODM service available
CE certification available
Suitable Products
The tortilla press can be used for:
Flour Tortillas
Corn Tortillas
Soft Tortillas
Mexican Tortillas
Tortilla Wraps
Chapati
Roti
Flatbread
Other Round Dough Products
Applications
Widely used in:
Mexican food production plants
Commercial bakeries
Food processing companies
Restaurant central kitchens
Catering businesses
Flatbread production facilities
Wrap manufacturing companies
Why Choose Our New Technology Tortilla Press?
Consistent Forming Quality
The automatic pressing system helps produce tortillas with consistent size, thickness, and shape.
Adjustable Product Specifications
Pressing parameters can be adjusted according to different dough formulations and tortilla sizes.
High Production Efficiency
Automatic feeding and pressing reduce manual operations and improve production efficiency.
Intelligent PLC Control
The touch-screen PLC system simplifies operation and allows convenient production parameter adjustment.
Flexible Production Solution
The machine can operate independently or be integrated with dough preparation, baking, cooling, counting, and packaging equipment.
Customized Equipment
We can customize pressing plate size, production capacity, tortilla diameter, thickness, electrical configuration, and machine layout according to customer requirements.
FAQ
Q1: Can the machine produce both flour and corn tortillas?
Yes. The equipment can be configured according to the dough characteristics and tortilla production process.
Q2: Can I customize the tortilla diameter and thickness?
Yes. The pressing system can be customized for different tortilla sizes and thickness requirements.
Q3: Can this machine be connected to a complete tortilla production line?
Yes. It can be integrated with dough mixers, dough dividers, ball forming machines, baking ovens, cooling conveyors, counting systems, and packaging machines.
Q4: What is the production capacity?
The output depends on tortilla diameter, thickness, pressing cycle, and machine configuration. We can design the equipment according to your required production capacity.
Q5: Do you provide OEM & ODM services?
Yes. We provide customized design, machine branding, production capacity, electrical configuration, and complete tortilla production solutions.
1. Raw Material Mixing and Dough Preparation
The automatic tortilla production line starts with precise raw material preparation. Wheat flour, corn flour, water, vegetable oil, salt,
sugar, and optional ingredients are accurately weighed and mixed to form a smooth and stable tortilla dough. The intelligent dough
mixing system helps ensure uniform hydration and consistent dough quality, providing an ideal foundation for high-quality tortilla
production.
2. Dough Feeding and Automatic Conveying
After mixing, the prepared dough is transferred by the automatic conveying system into the processing section. Continuous dough feeding
reduces manual handling, improves hygiene standards, and keeps the tortilla manufacturing process running efficiently for large-capacity
industrial production.
3. Dough Dividing and Rounding
The dough is automatically divided into equal portions with accurate weight control, then rounded into smooth dough balls. This process helps
maintain consistent tortilla diameter, thickness, and product appearance. The precision divider and rounder improve efficiency while reducing
material waste.
4. Controlled Proofing System
Rounded dough balls enter the proofing chamber where temperature, humidity, and resting time are automatically controlled. Proper proofing
improves dough elasticity and softness, making the tortillas easier to press while improving texture and finished product quality.
5. Heated Press Forming
After proofing, each dough ball enters the heated tortilla press. The pressing plates flatten the dough into uniform round tortilla sheets. The automatic
tortilla pressing system ensures even thickness, stable shape, and smooth surface appearance, preparing the product for baking.
6. Tunnel Baking and Continuous Heating
The formed tortillas move through a tunnel oven for continuous baking. Heat is evenly distributed to cook, dry, and shape every tortilla. This stage helps
create ideal tortilla color, soft texture, flexible structure, and authentic flavor while maintaining stable production output.
7. Rapid Cooling Conveyor
Freshly baked tortillas are transferred to the cooling conveyor system. Fast cooling lowers product temperature quickly, reduces moisture accumulation,
prevents sticking, and prepares tortillas for stacking and packaging.
8. Automatic Counting and Stacking
The cooled tortillas are counted automatically according to preset quantities and stacked neatly. The intelligent counting system ensures each stack remains
consistent, improving packaging speed and reducing labor costs.
9. Automatic Packaging and Finished Product Output
The stacked tortillas can connect directly with an automatic packaging machine for sealing, packing, and final output. The fully integrated tortilla packaging line
supports continuous industrial production, improves production efficiency, and helps manufacturers achieve stable high-volume tortilla output with reduced labor requirements.
Application of Tortilla Production Line This automatic tortilla making machine is widely used for:
Burrito tortilla manufacturing
Wrap tortilla processing
Frozen tortilla food processing
Commercial bakery and food factory production
Our commercial tortilla production line helps customers achieve efficient tortilla manufacturing with reliable quality, flexible customization,
and stable long-term performance for industrial food processing.
Line Layout Diagrams:(Modular configurations tailored to your factory space and production requirements.)
MACHINE COMPONENTS：
Chunker 2. Elevator 3.Elevator 4. Poorfer 5. Dough Ball Distributor Table 6.Hot Press 7. Oven 8. Vaccum Conveyor 9. Cooler Conveyor 10. Counter Stacker
MACHINECOMPONEN:
1.Chunker 2. Elevator 3. Elevator 4. Poorfer 5. Dough Ball Distributor Table 6.Hot Press 7.0ven 8. Vaccum Conveyor 9. Cooler Conveyor
10. CCD Visual Inspection 11. Counter Stacker
MACHINE COMPONENTS:
1.Chunker 2 .Elevator 3. Divider Rounder 4. Poorfer 5. Dough Ball Distributor Table 6.Hot Press 7. 0ven 8. Turning Conveyor 9 .Vaccum Conveyor
10. CoolerConveyor 11. Counter Stacker
MACHINE COMPONENTS:
1.Chunker 2 .Elevator 3. Divider Rounder 4. Poorfer 5. Dough Ball Distributor Table 6.Hot Press 7.0ven 8. 90° TurningConveyor 9. Vaccum Conveyor
10. Cooler Conveyor 11. Counter Stacker
