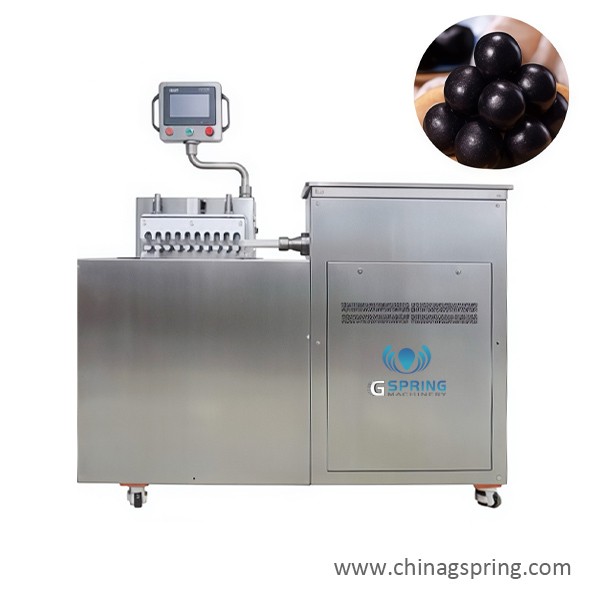

Snack Ball Making Machine

Ball forming machine for chocolate, date, sesame, cheese & mango balls. Adjustable ball size, stainless steel, easy to clean. CE certified. Get a free quote today.

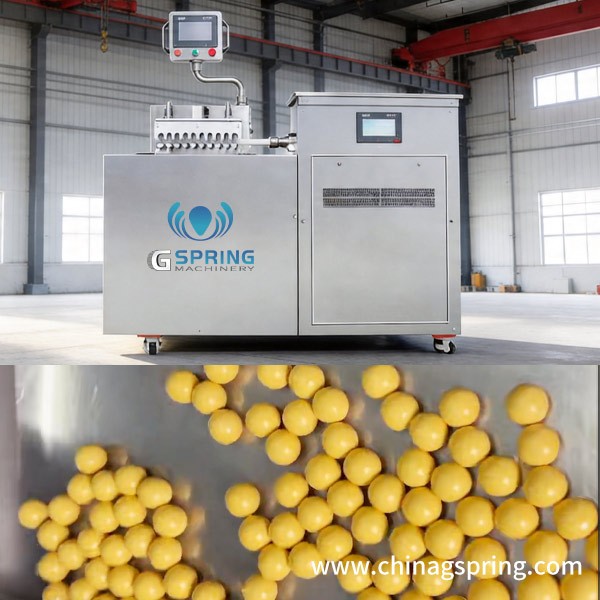

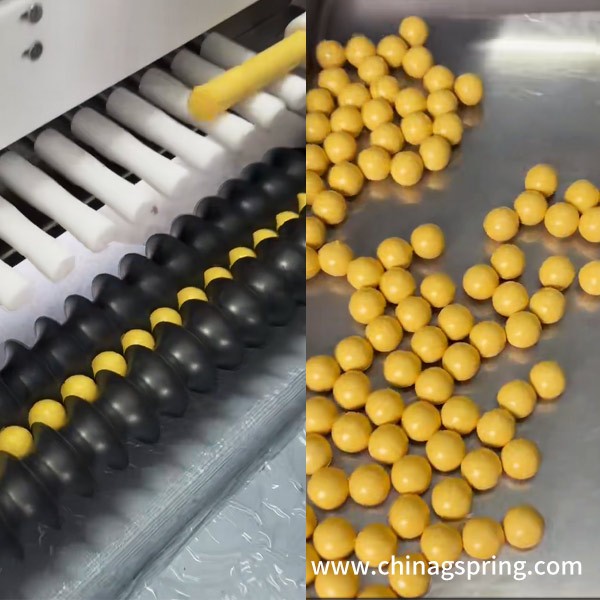

The fully automatic snack making ball machine realizes automatic and continuous work from feeding,stripping, pushing,slitting,rolling balls,and removing ball strips,starting from scratch.Based on the characteristics of small and medium-sized snack factories,traditional Chinese medicine hospitals, clinics,food factories,and preparation rooms,this machine is a small fully automatic ball making machine newly developed by our company, featuring small size,simple operation,and convenient cleaning.




Scope of application

Varieties available for production: Traditional Chinese Medicine Pills (Da Mi Wan), Black Sesame Balls, Chocolate Ball, Date Ball, Sweet Potato Ball, Mango Ball, Pet Bag, Cat Mint Ball etc.

Features

1.The contact part between the conveyor and the materialis made of stainless steel,and its speedis stepless speed regulation to ensure the strip production speed of various specifications;

2.The rolling speed is controlled by variable frequency speed regulation (suitable for multiple materials) ;

3.Photoelectric sensor is used to control the cutting length to ensure consistentlength of the drugstrip and constant quantity of each product ;

4.The two ends of the drug head are separated from the irished product,liminating the need to select the drug head from the finished product ;

5.Using a cylinder to control the pushing and cutting of strips;

6.The electrical system adopts PLC control (Siemens);

7.Edible oil or alcohol can be rinsed during production.Prevent honey balls from sticking to the mold.

Technical Specifications

Model 型号		ZW-369S	ZW-700S
Voltage（V)电压		220/380	220/380
Power(kw)功率		2.1	3.8
Theoretical yield理论产量	3g( 15mm )	14000~15000丸/时约 42~45kg/h	25000~27000 balls/h ;75~85kg/h
	6g ( 19mm )	10000-11000丸/时约 60-66kg/h	18000~20000 balls/h ;100~110kg/h
	9g( 23mm )	7000~8000丸/时约 70~80kg/h	13000~15000 balls/h ;110~150kg/h
Compressed air压缩空气		≥0.5Mpa	≥0.6Mpa
Shaped outer dimensions (mm)外形尺寸		1580x680x1520	1938x802x1570mm
Weight(kg)重量		385	550kg
