Tortilla automatic production line JKBP-650 740

Description:

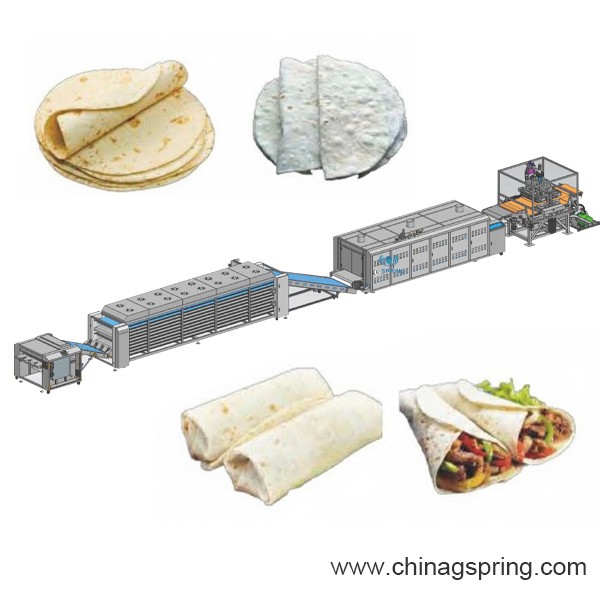

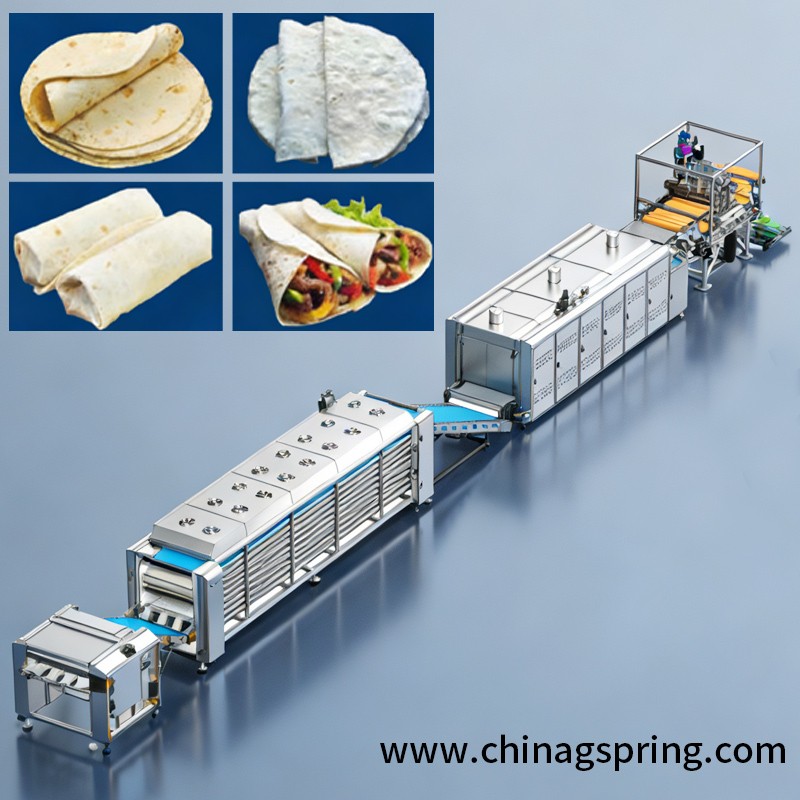

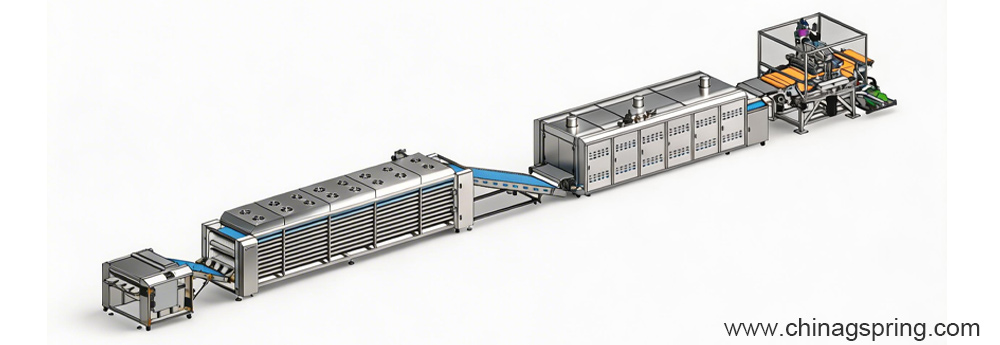

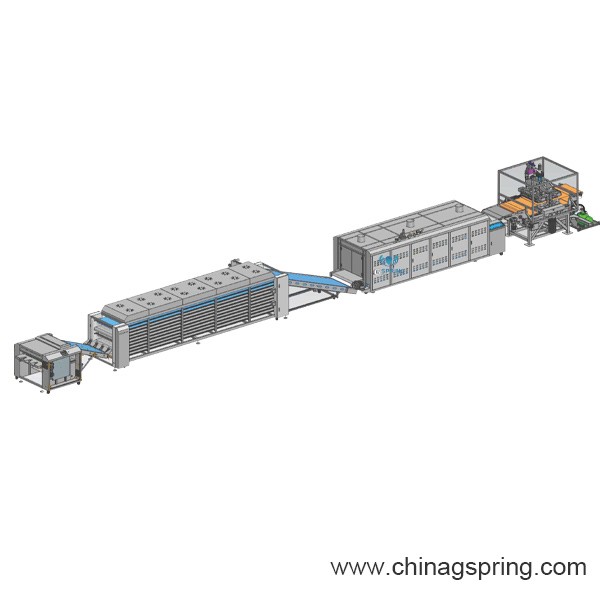

The whole big dough block is made into small sections after the dough divider, and then the small sections are made into small doughs, and then it enters into the fermenting machine for 10-15 minutes, and then it is sent by the conveyor belt to the main machine for shaping to become the pastry, and then it enters into the oven for baking and then it enters into the cooling racks to cool down, and finally, it goes through the stacking machine to organize and waits to be packaged.

EMAIL


Description:

The whole big dough block is made into small sections after the dough divider, and then the small sections are made into small doughs, and then it enters into the fermenting machine

for 10-15 minutes, and then it is sent by the conveyor belt to the main machine for shaping to become the pastry, and then it enters into the oven for baking and then it enters into the

cooling racks to cool down, and finally, it goes through the stacking machine to organize and waits to be packaged.


Technical Specifications 650

生产能力Production capacity

6lnch:6000-8000pcs/h(片/小时);8Inch:3000-4000pcs/h(片/小时);

10Inch:3000-4000pcs/h(片/小时);12Inch:3000-4000pcs/h(片/小时)

外型尺寸Overall dimensions

21000x1555x2080 mm

功率Power

70kw

设备重量Equipment weight

5500kg

产品直径Diameter

6-12Inch


Technical Specifications 740

生产能力Production capacity

6Inch:6000-8000pcs/h(片/小时);8Inch:3000-4000pcs/h(片/小时);

10Inch:3000-4000pcs/h(片/小时);12Inch:3000-4000pcs/h(片/小时)

外型尺寸Overall dimensions

21000x1555x2080mm

功率Power

70kw

设备重量Equipment weight

5500kg

产品直径Diameter

6-12Inch


Gspring Machinery  have more than 10 years experience on export, export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam,

Indonesia, Pakistan,Philippines, Brazil, Egypt, Czech, Singapore, Armenia, Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal,

Azerbaijan etc.
