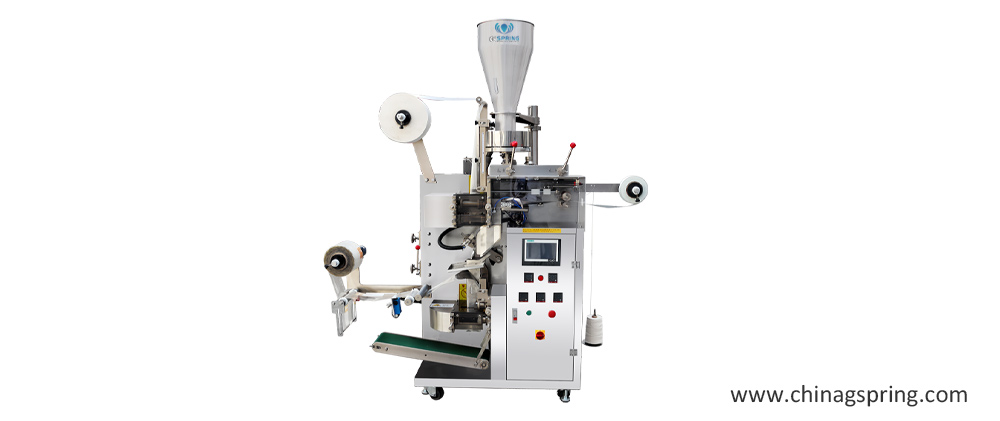

Inner and outer bag packaging machine

1、The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as:tea, herbal tea,health tea grass-root type and so on.
2、Inner and outer bag's film drawing is controlled by the stepper motor,stable bag length and accurate positioning.
3 、The temperature controller is adjusted by PID to make the temperature control more accurate.
4、Overall machine movement is controlled by PLC,with human-machine interface display,ensure health of products
5、Packing material:filter paper,thread,composite membrane and labels.

Main feature:

1、The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as:tea, herbal tea,health tea grass-root type

and so on.

2、Inner and outer bag's film drawing is controlled by the stepper motor,stable bag length and accurate positioning.

3 、The temperature controller is adjusted by PID to make the temperature control more accurate.

4、Overall machine movement is controlled by PLC,with human-machine interface display,ensure health of products

5、Packing material:filter paper,thread,composite membrane and labels.

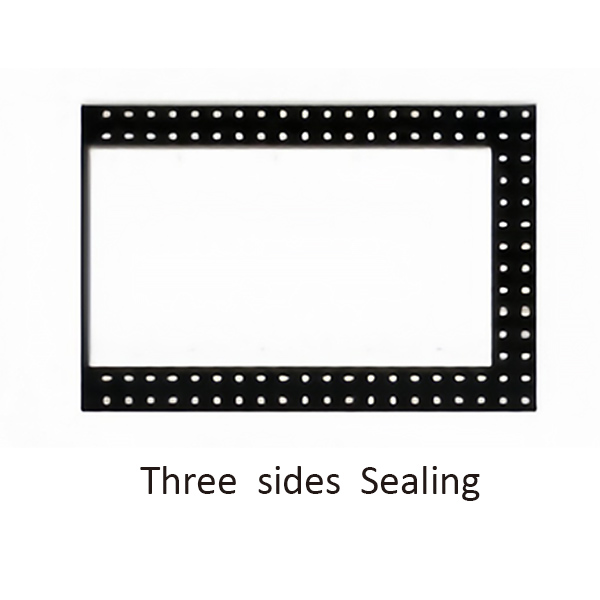

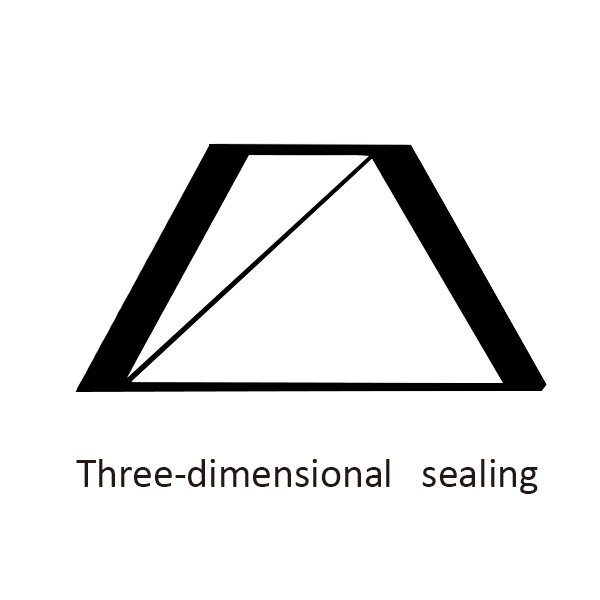

Sealing Type：

Technical parameter：

Model 型号	NWD- 169	NWD-188
Voltage（V)电压	220V/50HZ
Power(W)功率	3.7	3.7
Measuring range计量范围	1~15g	1~15g
bags/min包装速度	30-40	20-35
内袋制袋尺寸	长L50-70	长L30-180 宽W20-140
宽W55-80	长L50-74	85x110x190
宽W55-90	400	400
外袋制袋尺寸mm	长L80~120宽W75~95	长L30~120 宽W20~100
Size( mm )尺寸	175x74x195	172x90x227
Weight ( kg )重量	450	600
封口方式	热封	超声波

China Gspring machinery from China is the professional manufacturer of industrial microwave machinery. We have more than 15 years experience on export,

export to all over the world, like USA, Canada, Russia, India, Sri Lanka, Turkey, Vietnam, Indonesia, Pakistan, Philippines, Brazil, Egypt, Czech, Singapore, Armenia,

Iraq, Iran, Malaysia, Bangladesh, Mexico, Peru, Algeria, Poland, Thailand, Nepal, Azerbaijan etc. we can customized machinery specially based on your specific request.

Welcome to contact grace@chinagspring.com to learn more.
